Stack Overview

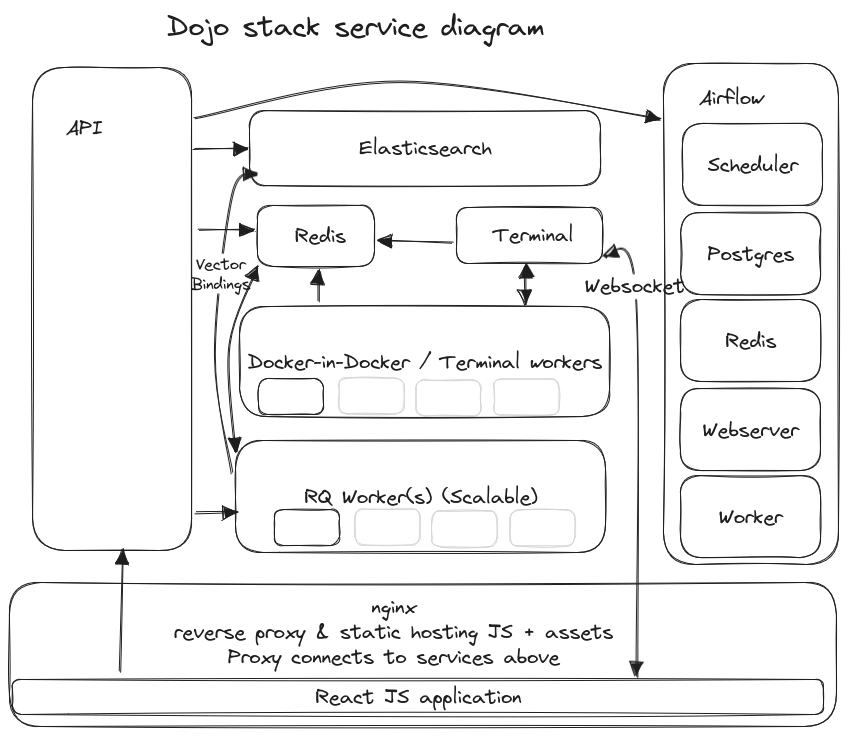

Diagram of stack

Excalidraw file

The dojo stack is made up of multiple services that work together to provide full functionality.

Primary Stack Services

• API - FastAPI service that handles the majority of the data storage, and CRUD endpoints. Python-based server.
• ElasticSearch - Primary datastore for the the project
• Redis - Used as queuing back-end for RQ which is performs data-manipulation jobs in the background, also used to cache lock and connection data for the Terminal service
• Terminal - (Formerly Clouseau/Claudine) Provides a SSH-like connection to the interior of a docker container that is configured to run a model. This is done by actually running the model, then annotating the parameters, configurations, outputs, and accessory (media) files.
• UI - Web Application where users can perform most operations. Alternatively can use the API only
• RQ Worker - Redis Queue Worker that takes queued tasks from redis and performs certain async operations, then stores the result for the UI or API to consume (async)
• Airflow - Runs Models from container after having registered a given model.
