Data Registration

Getting started

The data registration workflow currently supports 4 data types:

• CSV
• Excel
• NetCDF
• GeoTIFF

You can register a dataset by clicking the Register a Dataset link on the Dojo landing page or above the list of all existing datasets. Please reach out to dojo@jataware.com for credentials or help with the application. From there you will be asked for basic metadata about your dataset.

note

Please provide as much information as possible throughout the data registration process to ensure that sufficient information is available to end-users of your dataset.

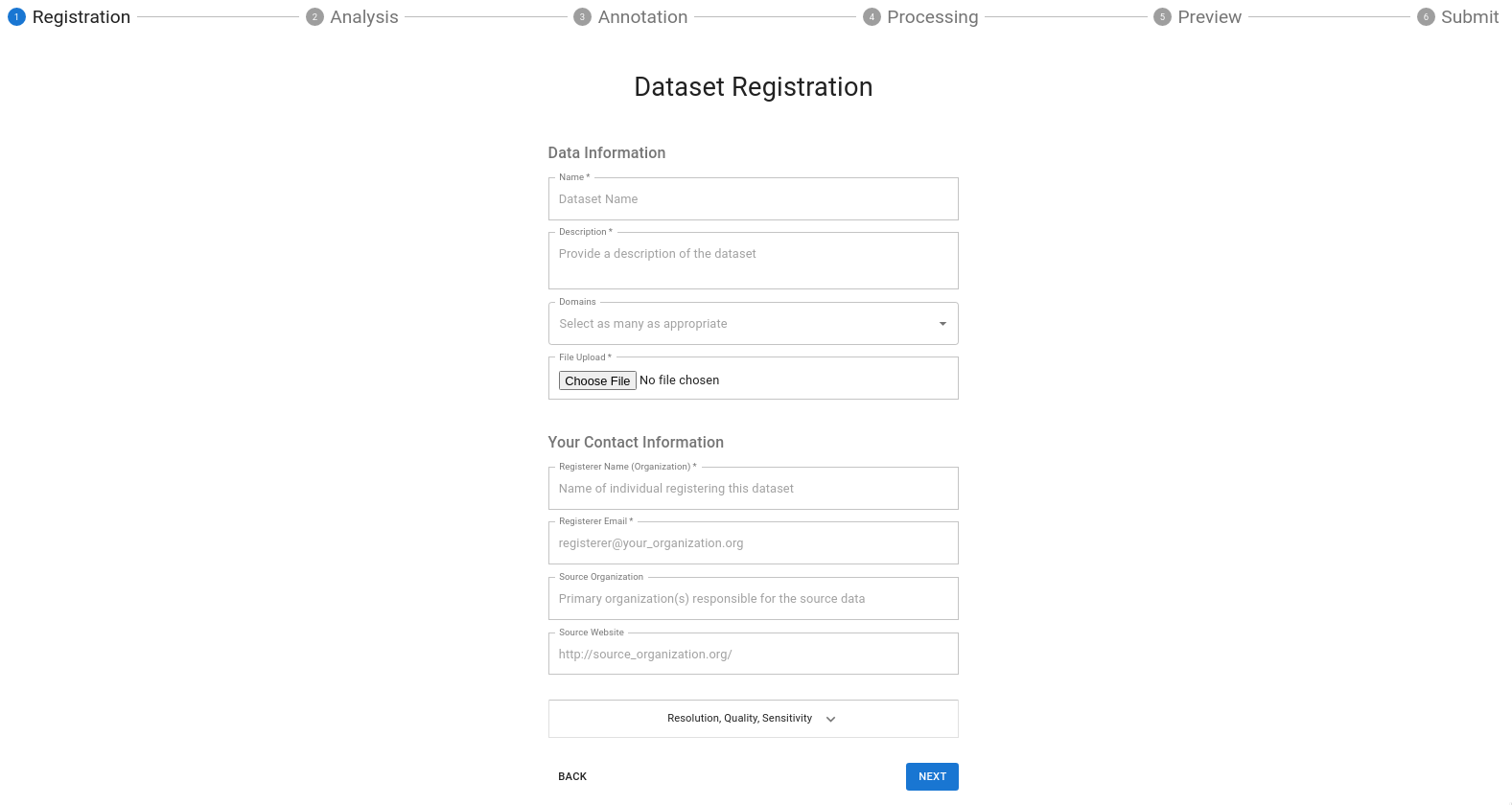

Metadata capture

This form captures metadata about your data. There is a demonstration below, as well as definitions for each field:

Model Overview Form Field Definitions:

• Name: Name of the Dataset
• Description: Your description here is the forward-facing documentation about your data that the end-user will see. Include as much information as possible to explain your data.
• Category: Add any over-arching categories that your data can be classified as; separate each category with a comma.
• Resolution:
  • Choose the applicable temporal resolution from the drop-down
  • Enter the X and Y resolution of your spatial data
• Maintainer Information:
  • Name: The primary point of contact for the dataset.
  • Email: The primary point of contact's e-mail address. If you have one, a group e-mail is also acceptable.
  • Organization: The organization that created the dataset.
  • Website: This can be a link to your dataset's repository or another website that you may maintain that provides additional context about your data.
  • File: See preparing data for Dojo

Geo and time inference

Once you have uploaded your dataset, Dojo analyzes it to determine whether your dataset contains place or time information such as timestamps, latitude, longitude, ISO country codes, etc. This analysis process may take a few seconds, but it will ultimately speed up your data annotation.

Annotating your dataset

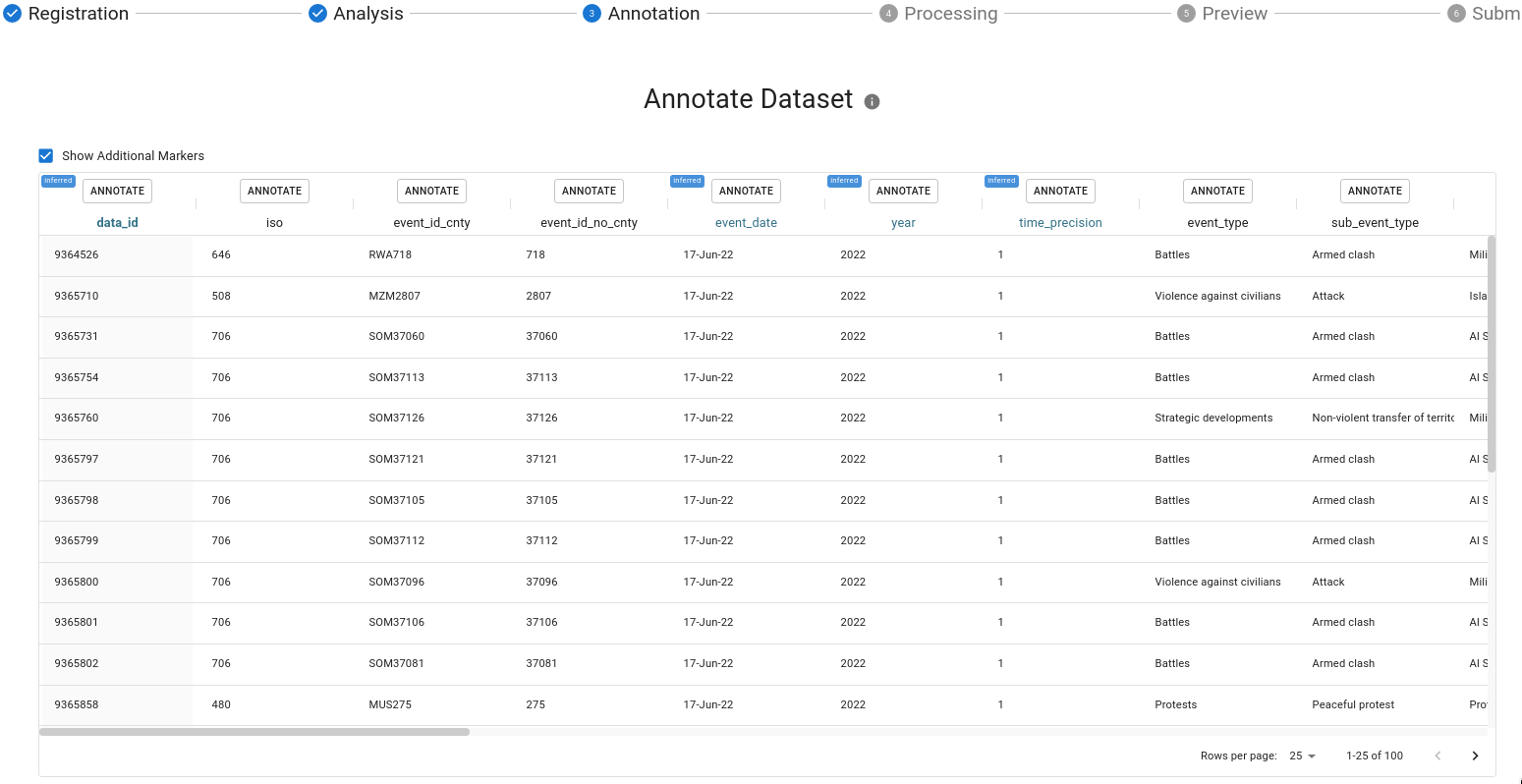

Next, you will be shown a sample of your dataset. Columns highlighted in blue represent those which had a detected time or location feature.

Click the Annotate button at the top of each column to annotate it.

tip

You should only annotate columns that you wish to retain in the final, transformed dataset.

Once you've annotated a column it will be highlighted in green.

You will be asked for a display name and description for your dataset. Additionally you will be asked whether this column is either Date, Geo, or a Feature.

In the case of Date and Geo columns, they may be set to primary. It is important to choose only one column to be the primary Date and one to be the primary Geo. In the case of a build a date or coordinate pairs all relevant columns will be associated as primary if the user sets that "grouping" to be primary.

Date formatting

In the below example, the user annotates the "Year" column.

For date columns, the format is automatically detected Date formats are defined using the strftime reference. Please refer to it for questions about how to correct or update the date format for a column. Generally, our column analysis process can correctly assign a date format, but periodically the user must update or correct this with an appropriate formatter. For example 2020-02-01 would have the date format %Y-%m-%d but Februrary 1, 2020 would be %B %-d, %Y.

If the date formatter is incorrect the column preview will turn red until the user has corrected it.

Build a date

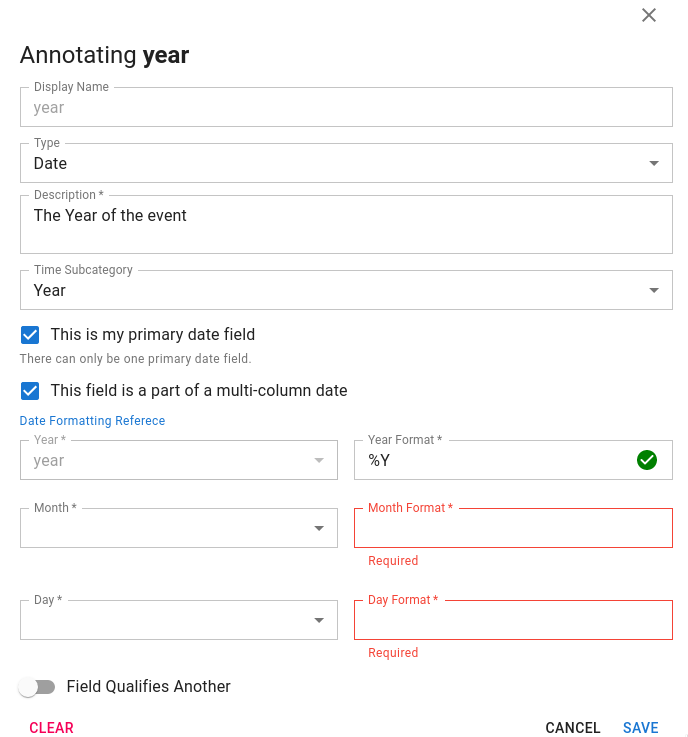

Some datasets have year, month and day split out into separate columns. In this case, the user may "build a date" by annotating any of the relevant fields and indicating that it is part of a multi-column datetime object.

Build a Date

The user can then select the relevant year, month and day columns as well as ensure they have correct date formatters.

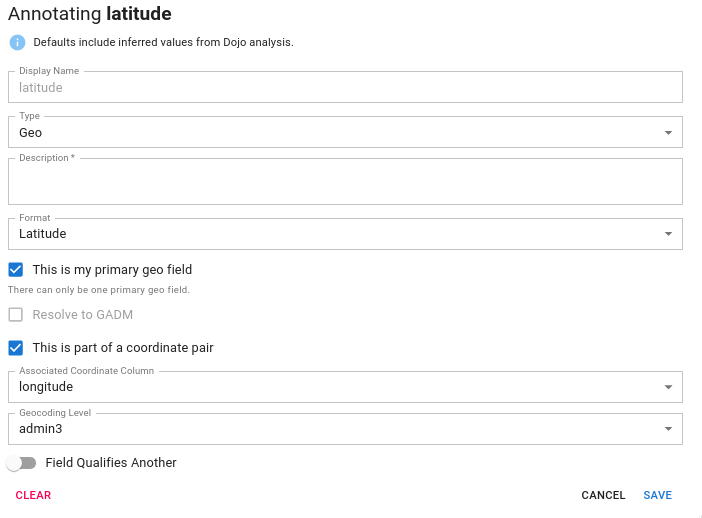

Coordinate pairs

Generally speaking, if a dataset has latitude and longitude in it we should annotate this and ignore the other geospatial information (unless they are qualifiers) as this is the most granular location information available and can be used to geocode the remainder of the dataset.

However, latitude and longitude are not typically contained in the same column. So, we provide a mechanism for the user to associate a latitude with a longitude and vice versa. To do this, you indicate that the column is part of a coordinate pair and choose its partner from the dropdown.

Coordinate Pair

Multi-part geographies

If a dataset has geographies that correspond to country, admin1, admin2, and admin3, these should be added without flagging as primary_geo.

If any of these are flagged as primary_geo, then the remaining geographies will be added as features.

For example, if the dataset includes:

ADMIN0	ADMIN1	ADMIN2
Djibouti	Dikhi	Yoboki
Djibouti	Obock	Obock

and the following assignments are made:

• ADMIN0 Type: Geo Format: Country This is my primary geo field
• ADMIN1 Type: Geo Format: State/Territory
• ADMIN2 Type: Geo Format: Country/District

the Preview will display results similar to:

country	admin1	admin2	feature	value
Djibouti	NAN	NAN	ADMIN2	Yoboki
Djibouti	NAN	NAN	ADMIN1	Obock

if instead the following assignments are made where no field is marked primary_geo:

• ADMIN0 Type: Geo Format: Country
• ADMIN1 Type: Geo Format: State/Territory
• ADMIN2 Type: Geo Format: Country/District

the Preview will display results similar to:

country	admin1	admin2
Djibouti	Dikhi	Yoboki
Djibouti	Obock	Obock

Qualifiers

Many datasets contain features that qualify other features. For example, in a conflict/event dataset such as ACLED, you may have a category for the type of event. The primary feature associated with the event may be number of fatalities, while the category "qualifies" the number of fatalities.

Qualifiers

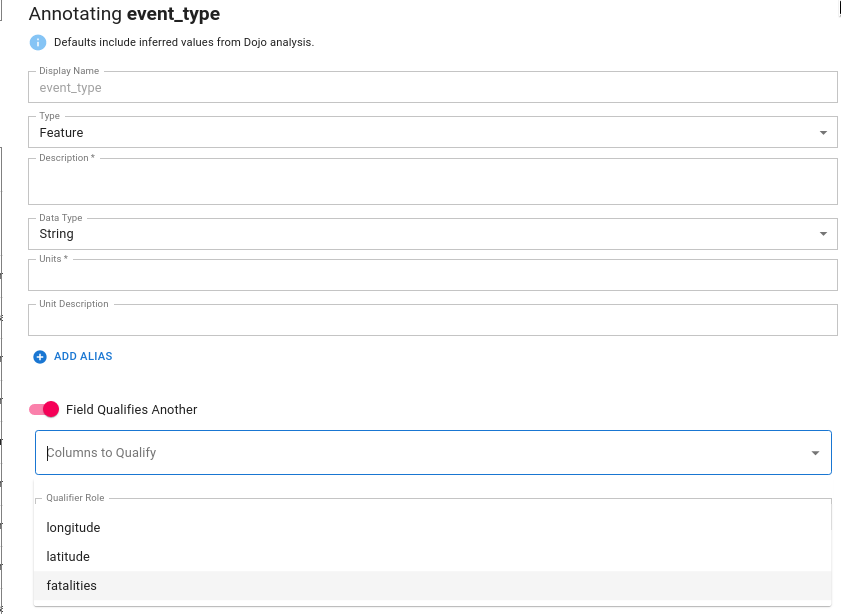

To set Event Type as a qualifier for fatalities the user should check the box indicating that this field qualifies another. The user should then select the relevant columns that the current feature qualifies. One field may qualify many features; in this case select all relevant features that the field of interest qualifies.

tip

You should only qualify other features, not Geo or Date information since those are inherently dataset qualifiers. This avoids "qualifying a qualifier."

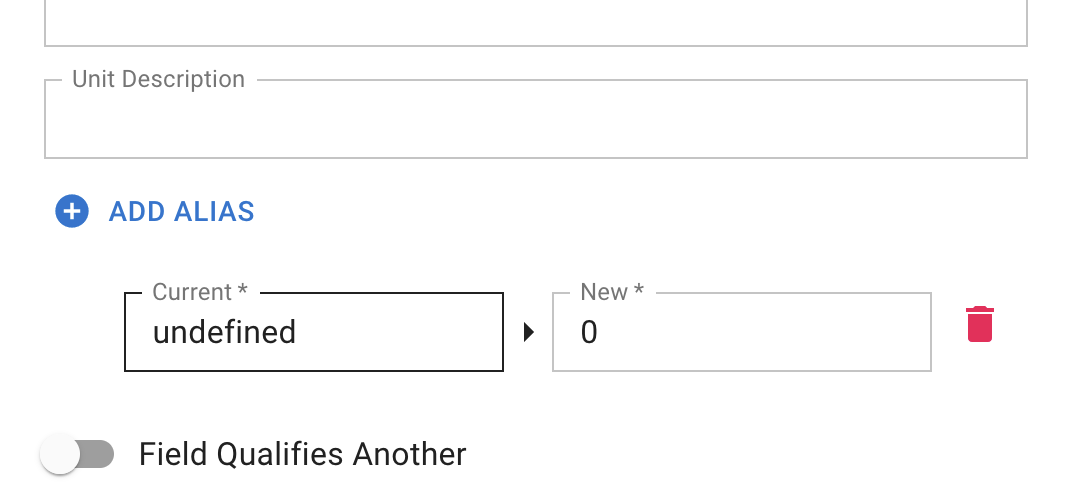

Add Alias

The "Add Alias" feature allows you to replace specific cell values within your selected column. This tool enhances Feature data - data that is not Geo or Date - to help provide more consistent representation after the dataset has been processed.

Add Alias

First, click the blue 'Add Alias' button. Then you'll see the Current and New value fields. Both fields are required to save the alias, or you'll have to remove the partially completed alias before you can save your annotation.

• Current Value: The original cell value.
• New Value: The value that will replace the current one.

For example, if your dataset includes a column with values like 'undefined', 'N/A', or 'null', these can be substituted:

• Current: undefined
• New: 0

Here, all 'undefined' values will be replaced with '0'.

Feature Statistics

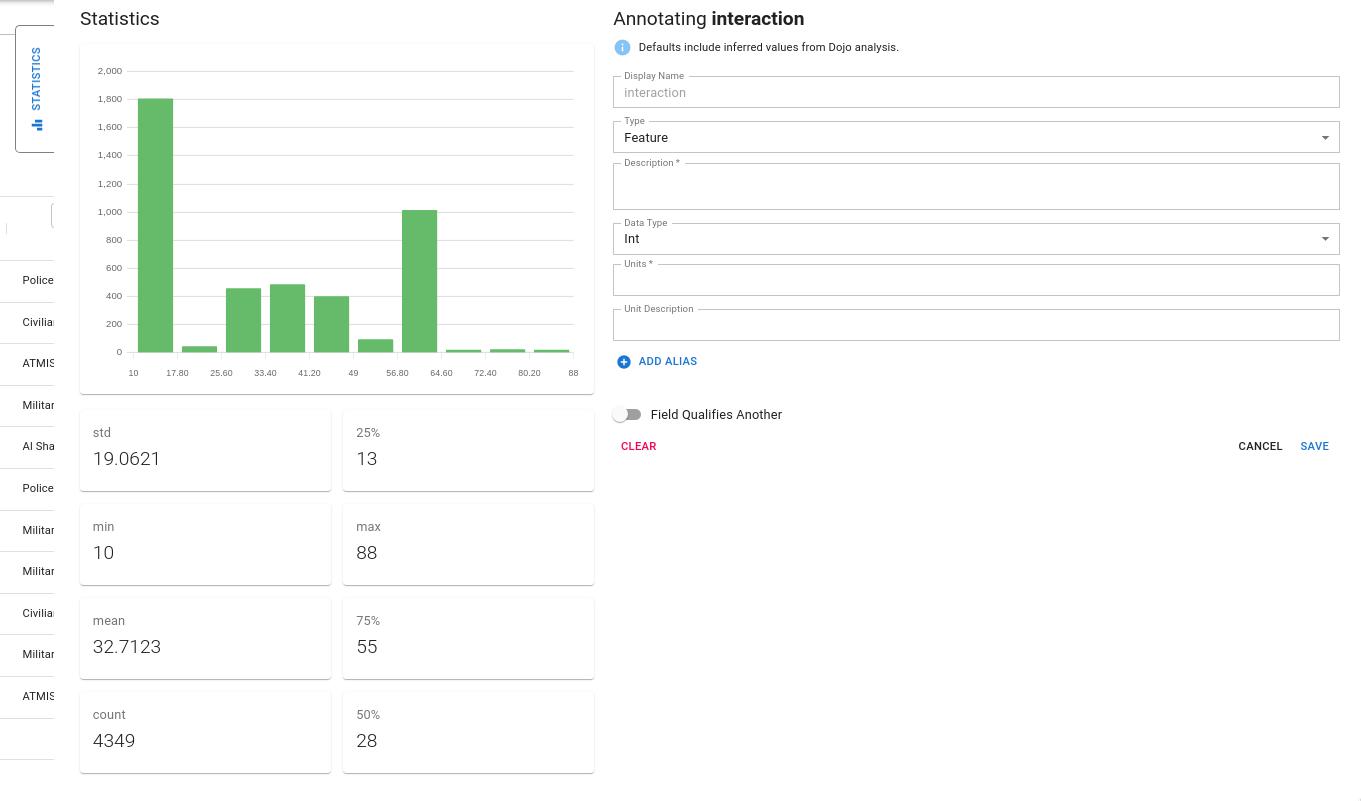

The feature annotation component includes a statistics tab. When expanded, this tab provides a variety of descriptive statistics about the feature including:

• the distribution of the feature (via a histogram)
• count
• min, median, max as well as percentiles
• for string features, the mode is provided

These statistics are intended to provide the user the ability to perform quality checks of the data they are annotating.

Manual Data Transformations

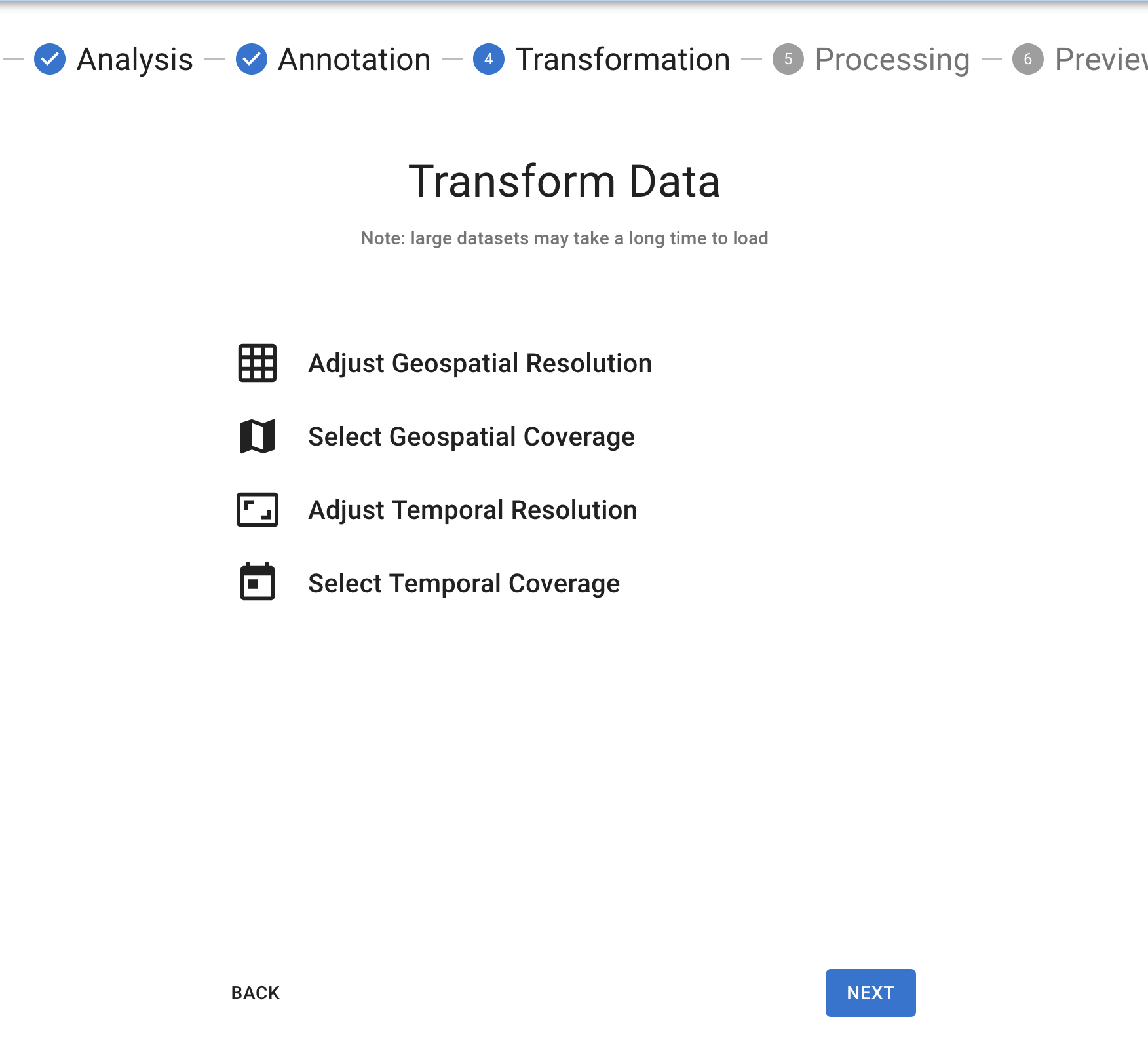

Before we process your dataset, you can pare down your data with our manual Data Transformations step. Some large datasets may take a long time in the processing step, so if some of the information contained is not relevant (e.g. the dataset covers 1990-2020, and you are only concerned with 2000-2020), you can use our transformation tools to do a few select adjustments to speed up the process. You can choose to do as many or as few of these as you'd like.

Transformation Step

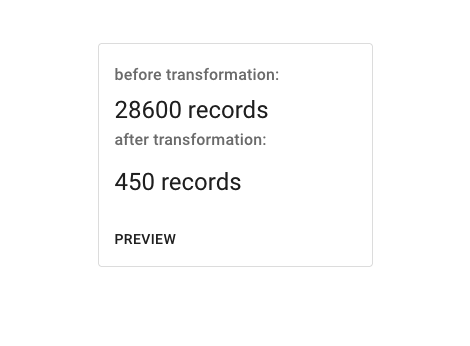

For each transformation, after you've made your selections, you'll be able to preview what effect your changes will have on the dataset with the Preview panel under the tool. Make your changes and the Preview button should become enabled (except in the case of Temporal Coverage, where you'll need to click 'Crop Coverage' before the Preview button will work).

Transformation Preview

None of the changes in the transformation panels will take effect until you click NEXT at the bottom of the page.

If your dataset meets certain qualifications, you can do the following:

Adjust Geospatial Resolution

If your dataset has uniform geospatial data, you can use this tool to expand the geospatial resolution. You will also need to select one of the following aggregation functions:

• Conservative: Conservative remapping, suitable for preserving the total value of the field (e.g., mass, population, water fluxes).
• Sum: Sum remapping, suitable for fields representing accumulated quantities (e.g., precipitation, snowfall, radiation fluxes).
• Minimum: Minimum remapping, suitable for fields where you want to preserve the minimum value within an area (e.g., minimum temperature, lowest pressure).
• Maximum: Maximum remapping, suitable for fields where you want to preserve the maximum value within an area (e.g., peak wind speeds, maximum temperature).
• Median: Median remapping, suitable for fields where you want to preserve the central tendency of the data, while being less sensitive to extreme values (e.g., median income, median precipitation).
• Average: Average remapping, suitable for fields representing average quantities (e.g., temperature, humidity, wind speed).
• Bilinear: Bilinear interpolation, suitable for smooth fields (e.g., temperature, pressure, geopotential height).
• Bicubic: Bicubic interpolation, suitable for smooth fields with higher-order accuracy (e.g., temperature, pressure, geopotential height).
• Nearest Neighbor: Nearest neighbor remapping, suitable for categorical data (e.g., land use types, soil types, vegetation types).

Select Geospatial Coverage

With this tool you can draw shapes on a map to clip your geospatial data.

Adjust Temporal Coverage

If your dataset has uniform temporal coverage, this tool can change the temporal resolution (e.g. from day to weekly). Similar to geospatial resolution, you will need to select one of the following aggregation functions:

• Count
• Size
• Sum
• Mean
• Std
• Var
• Sem
• Min
• Max
• First
• Last

Select Temporal Coverage

This tool allows you to select new start and end dates to crop the time that your dataset covers.

Processing the dataset

When you have finished annotating your dataset you should have at least one feature annotated as well as a primary geography and date. If no primary Date or Geo information was provided, we do our best to identify what might have been primary based on the user's annotations.

We then transform the dataset into a ready-to-use format. This process may take some time, depending on what is required. If the dataset is quite large and requires reverse geocoding latitude and longitudes into admin 0 through 3 (using GADM) it could take up to a few minutes.

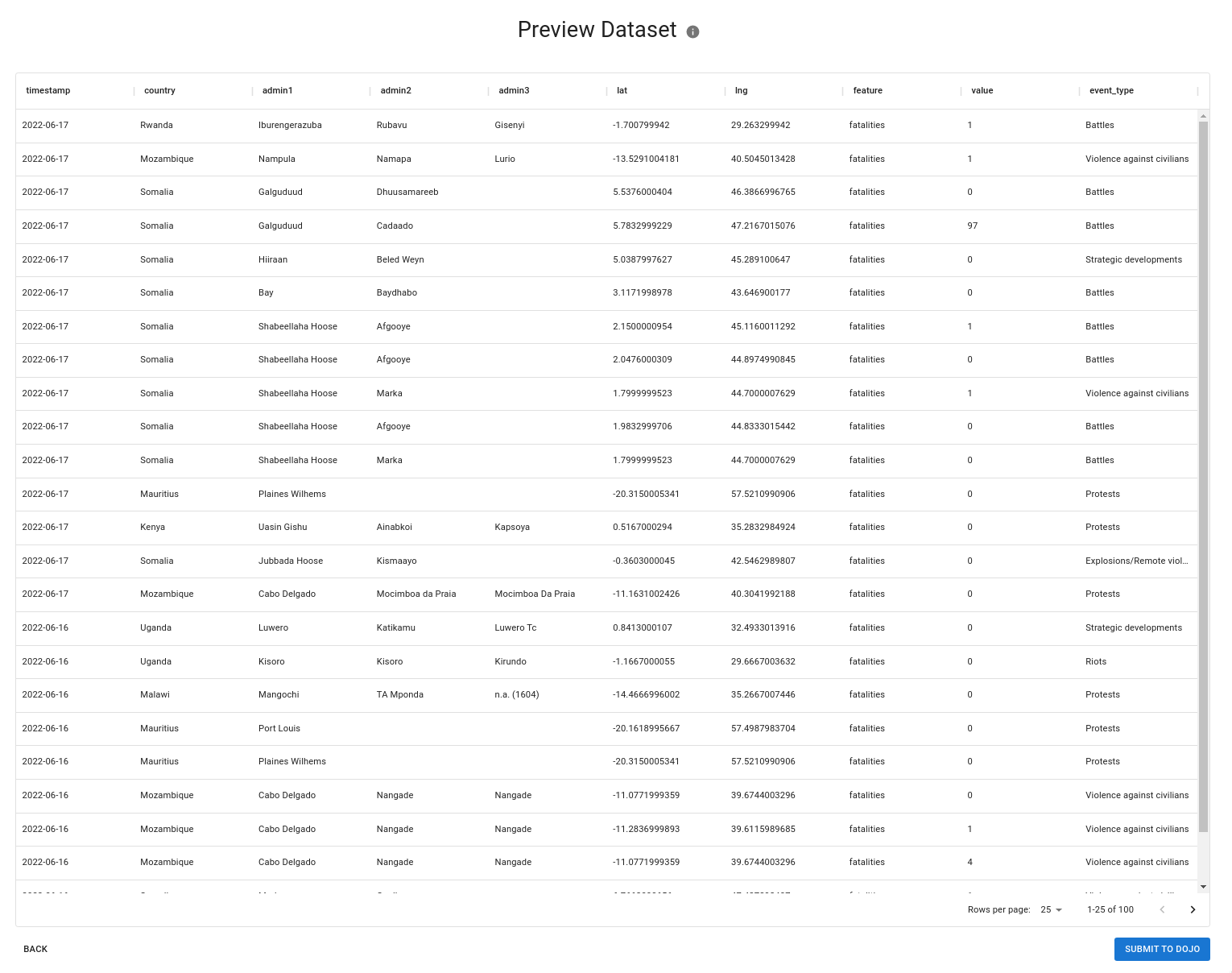

After the dataset has been transformed a preview will be shown in the ready-to-use format. If the dataset is large, a random sample of 100 rows is taken to allow the user to spot check accuracy. All features are "stacked" on top of each other. Qualifiers are added as additional columns to the right.

During this step, we attempt to automatically normalize all place names to the GADM standard. If your dataset contained columns for things like country, admin 1, ISO codes, etc we perform entity resolution behind-the-scenes to ensure that the place name spelling matches GADM. This ensures consistent place naming for downstream data consumers.

If everything looks good the user can download this table if they wish. To save their work, the user must Submit to Dojo. Upon success the user can register another dataset or view the final metadata in Dojo.
